LibrePCB

LibrePCB is an open-source electronic design automation tool for creating circuit schematics and designing printed circuit boards. It is intended for users who need to represent electronic circuits and develop corresponding PCB layouts in a single software project. In MirrorNest, it is listed for Linux under the developer-tools category.

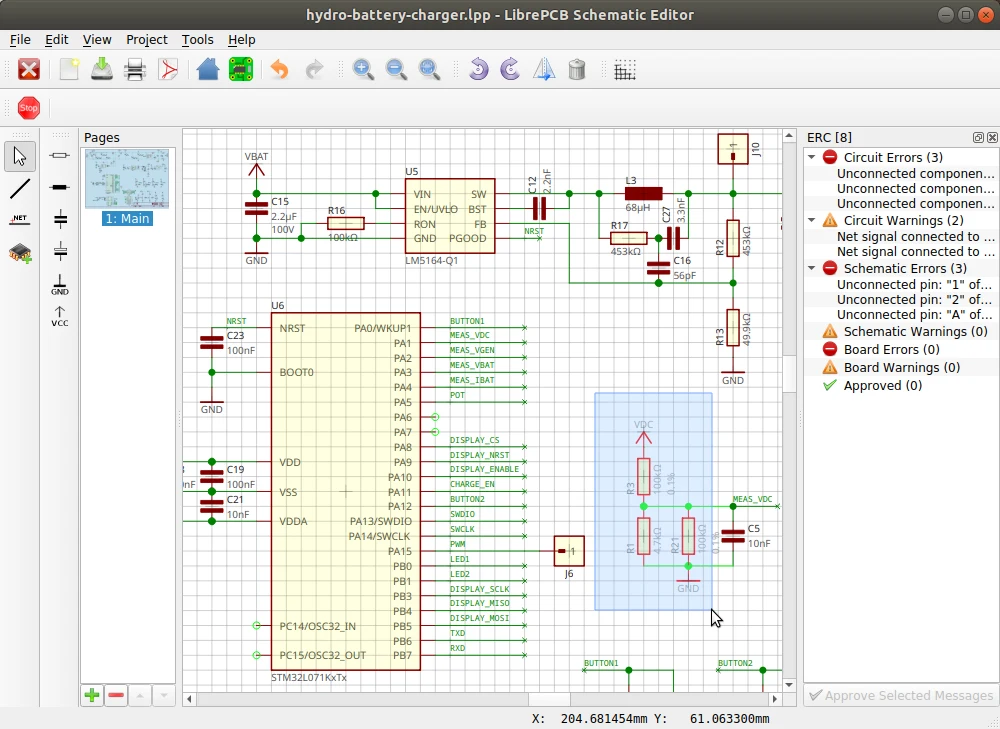

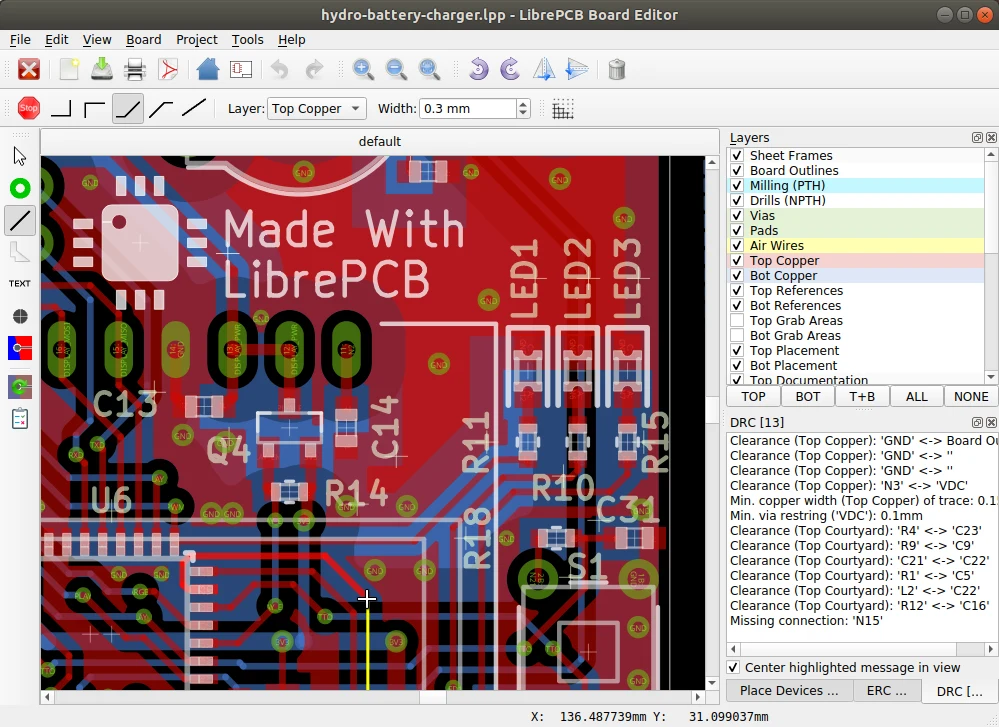

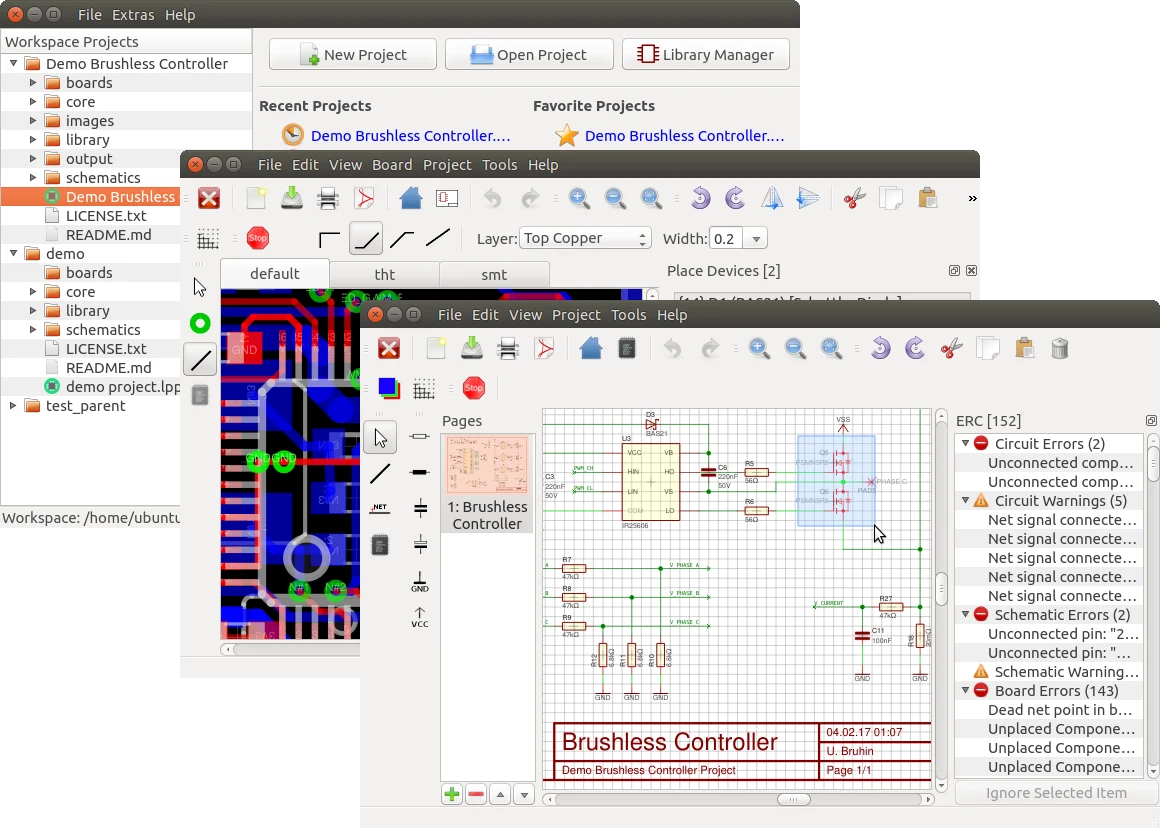

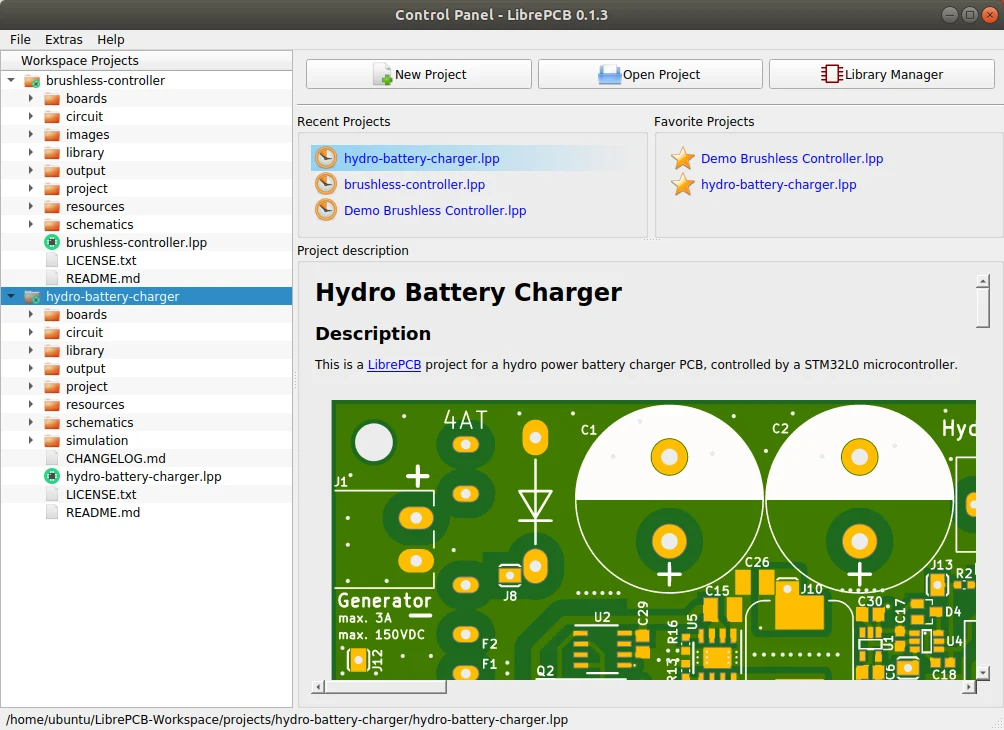

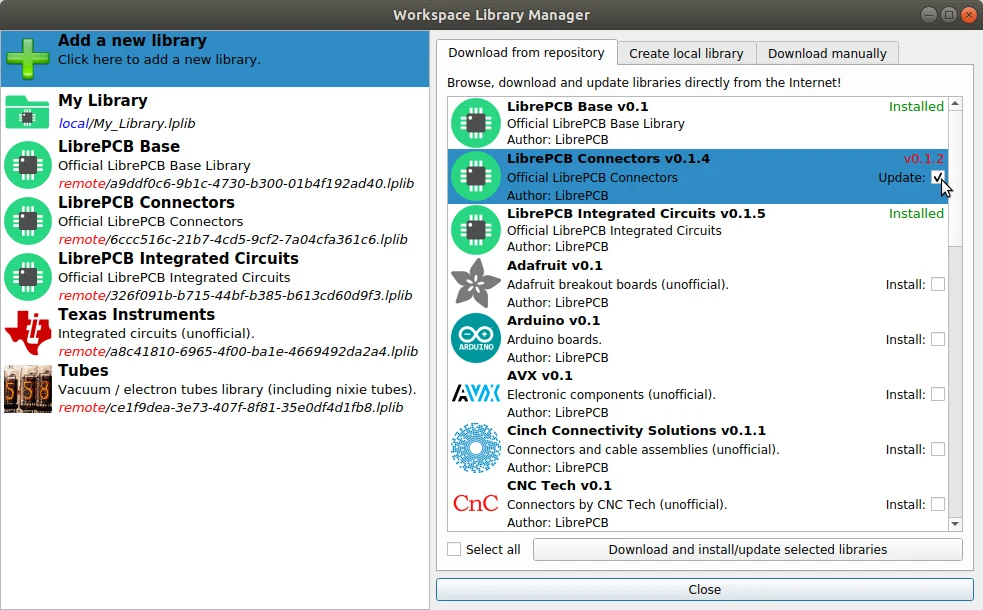

The application combines project management with editors for libraries, schematics, and boards. Its graphical interface is designed to be intuitive, modern, and easy to use while supporting the main stages of an electronics design workflow. LibrePCB also provides a powerful library-design system that includes innovative concepts for organizing and working with design components.

LibrePCB uses human-readable file formats, which makes its project data accessible in a form that is easier to inspect and understand than a format intended only for software processing. Although this catalog entry targets Linux, LibrePCB is cross-platform and also supports Unix, Mac OS X, and Windows. The software is open source and distributed under the GNU GPLv3 license.

MirrorNest mirrors the official LibrePCB build directly onto its own storage and scans it for malware before publishing it. The catalog copy is built from the upstream source at https://github.com/LibrePCB/LibrePCB. Users seeking guidance on starting with the application can consult the documentation at https://librepcb.org/docs/.
